Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Removal

1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

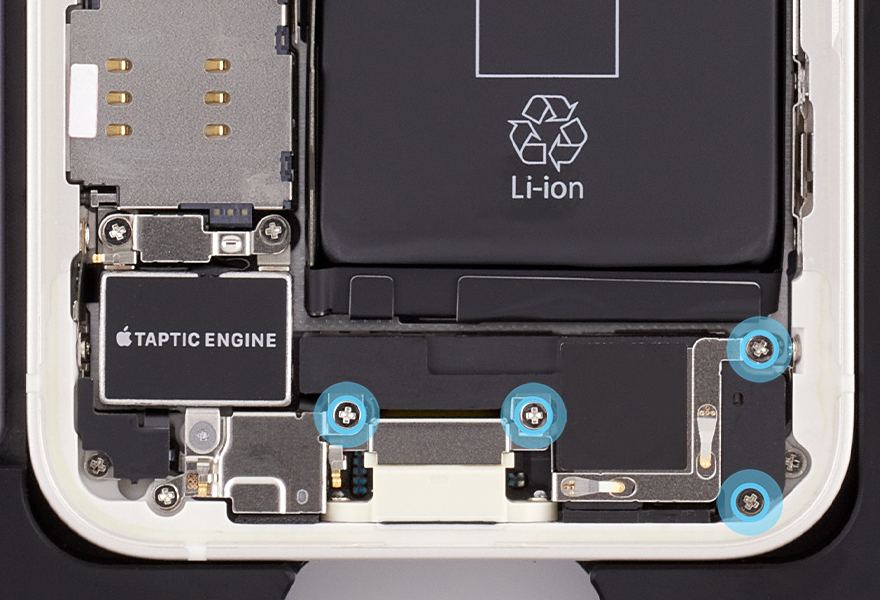

2. Use a torque driver and the JCIS bit to remove the four crosshead screws from the speaker. Set aside the screws.

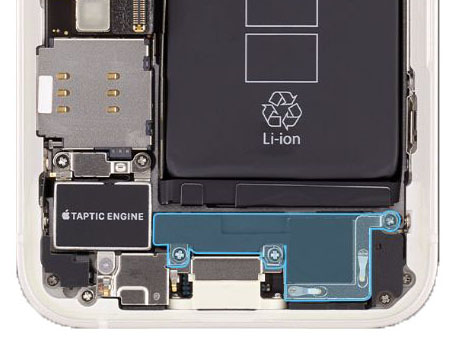

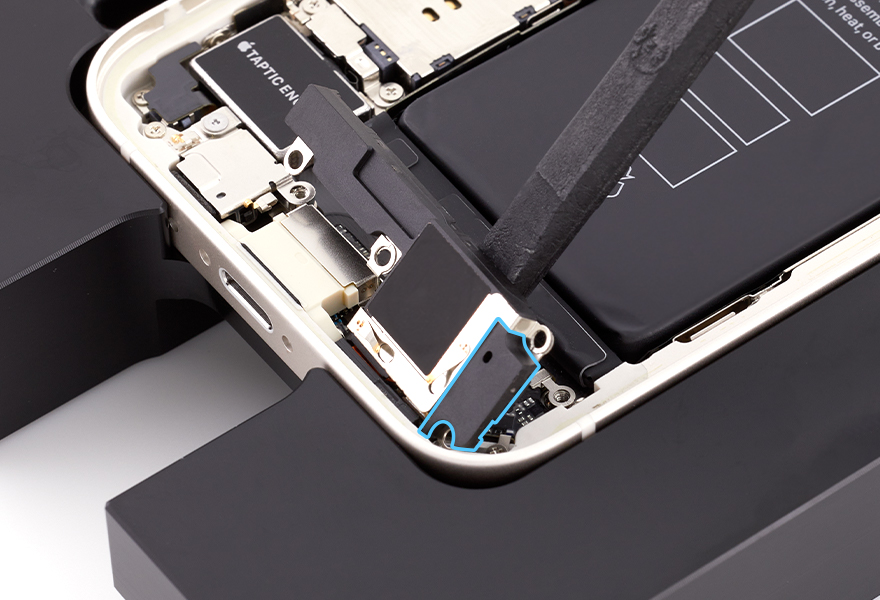

3. Use the black stick to tilt up the speaker. Then grasp the area outlined in blue and remove the speaker from the enclosure.



Reassembly

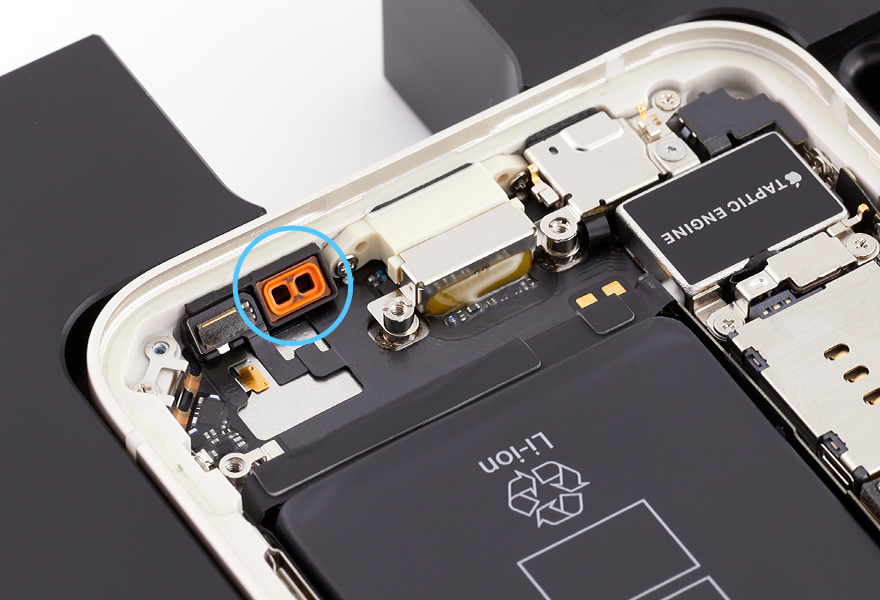

1. Rotate the repair tray. Ensure that the rubber gasket is positioned as shown. If the gasket is out of position, use ESD-safe tweezers to reposition it.



2. Insert the speaker into the enclosure.

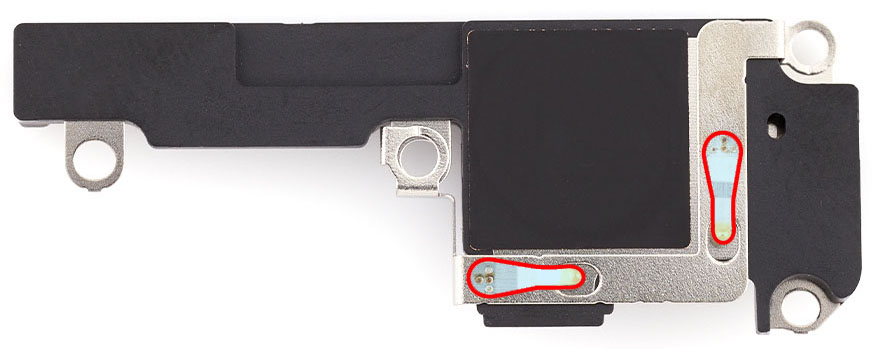

   •  Caution: Don’t damage the grounding springs on the speaker.

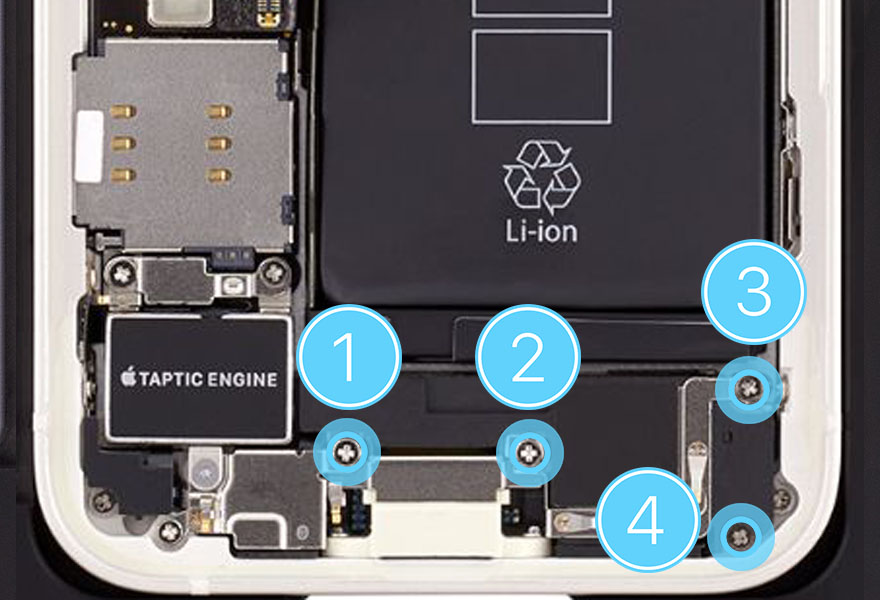

3. Rotate the repair tray. Use the green torque driver and JCIS bit to install four new crosshead screws into the speaker (923-05012) (1, 2) (923-05013) (3, 4).



Reinstall the following part to complete reassembly:

• Display
