Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Removal

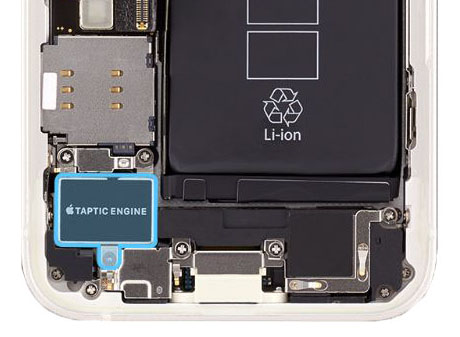

1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

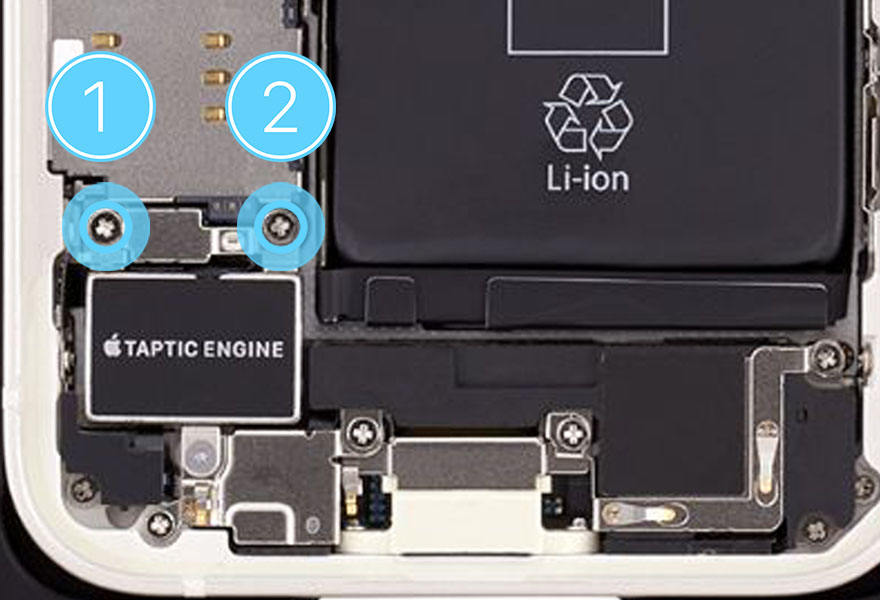

2. Use a torque driver and the JCIS bit to remove the two crosshead screws from the Taptic Engine  connector cowling. Set aside the screws.



3. Use ESD-safe tweezers to remove the Taptic Engine  connector cowling. Save the cowling for reassembly.

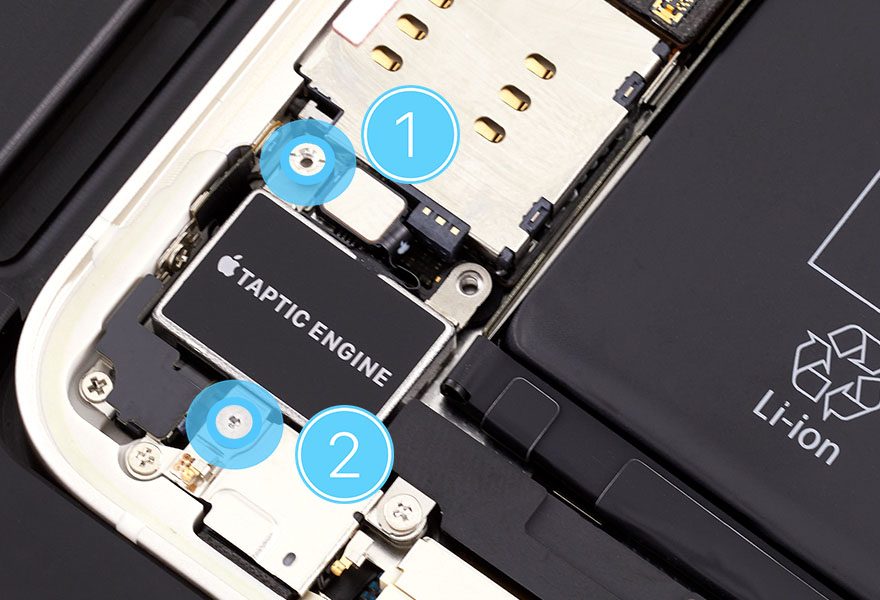

4. Use a torque driver and the super screw bit to remove the super screw (1) from the top of the Taptic Engine . Set aside the screw.

5. Use a torque driver and the Micro stix bit to remove the trilobe screw (2) from the bottom of the Taptic Engine . Set aside the screw.

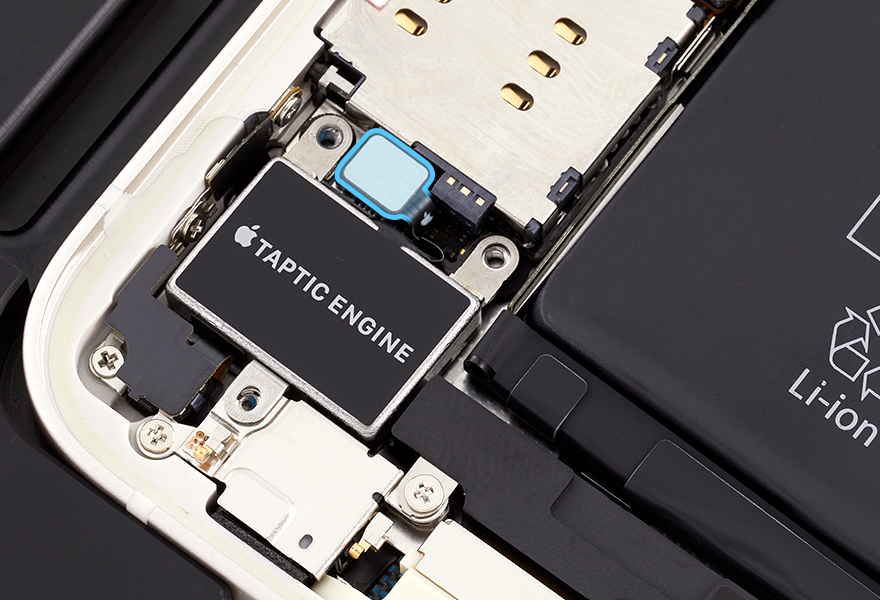

6. Use the black stick to lift the end of the Taptic Engine  flex cable off the connector.



7. Use ESD-safe tweezers to remove the Taptic Engine .

Reassembly

1. Position the Taptic Engine  in the enclosure.

2. Press the end of the Taptic Engine  flex cable to the connector.

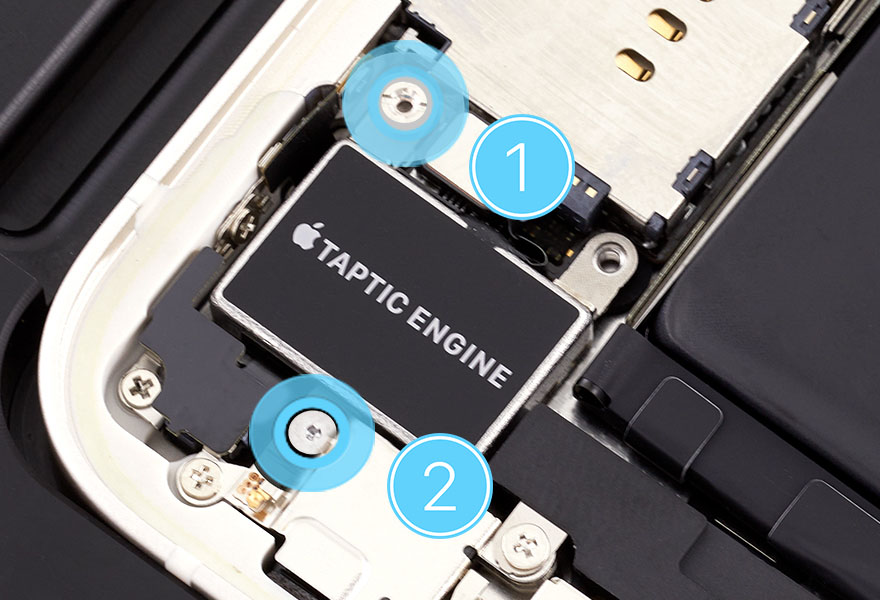

3. Use the gray torque driver and super screw bit to install one new super screw (923-05000) (1) into the top of the Taptic Engine .

4. Use the black torque driver and Micro stix bit to install one new trilobe screw (923-05001) (2) into the bottom of the Taptic Engine .



5. Position the Taptic Engine  connector cowling over the end of the flex cable.

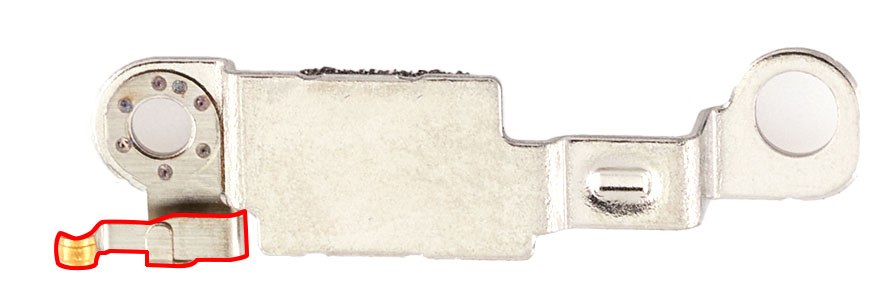

   •  Caution: Avoid touching the grounding spring on the Taptic Engine  connector cowling.

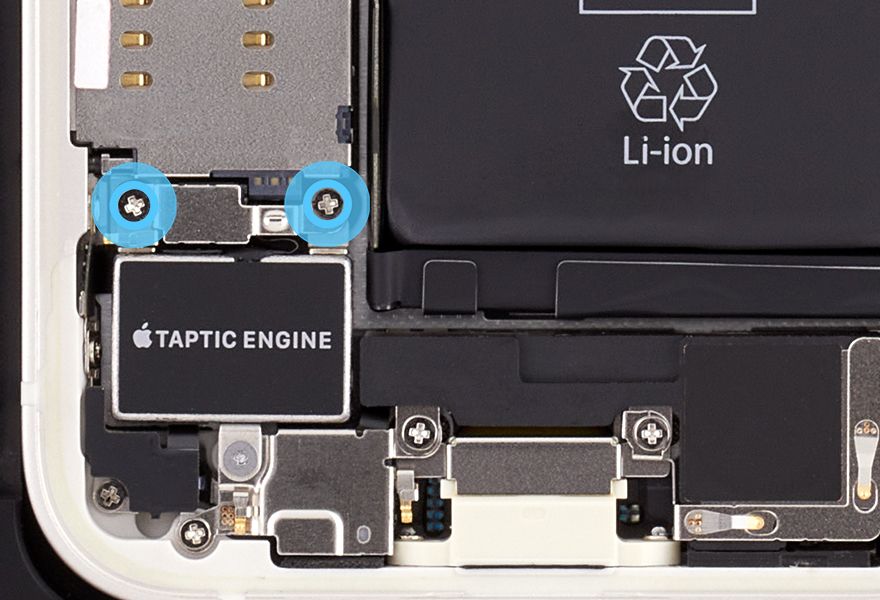

6. Use the green torque driver and JCIS bit to install two new crosshead screws (923-04997) (1) (923-04998) (2) into the Taptic Engine  connector cowling.



Reinstall the following part to complete reassembly:

• Display
