Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Removal

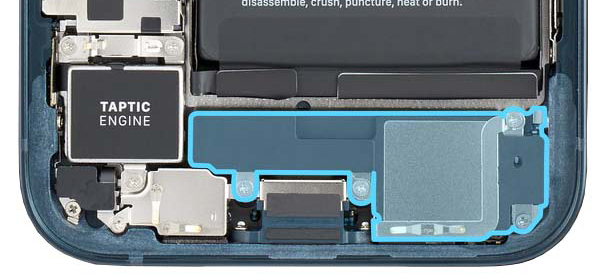

1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

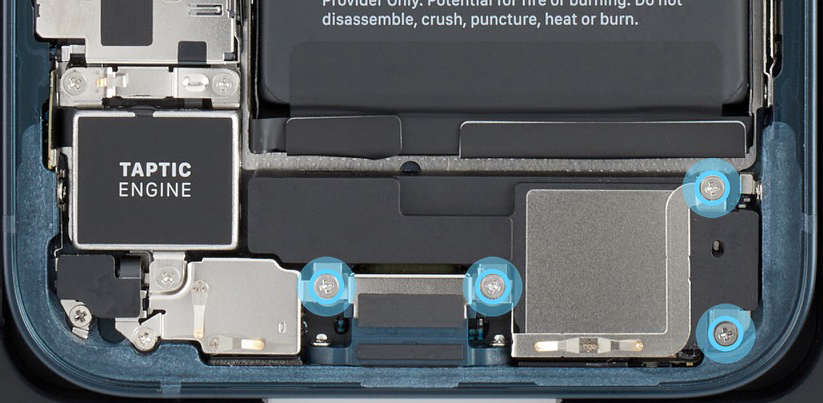

2. Use a torque driver and the JCIS bit to remove the four crosshead screws from the bottom speaker. Set aside the screws.

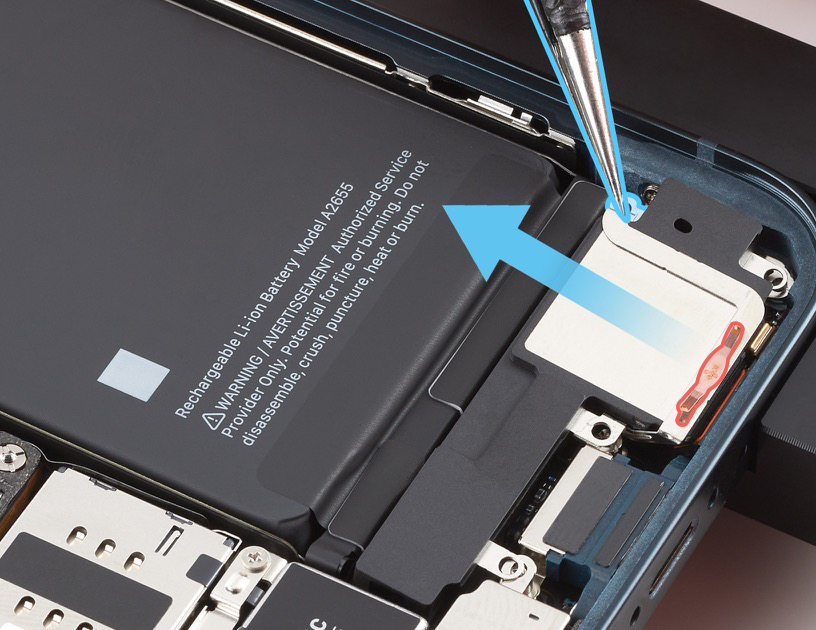

3. Use ESD-safe tweezers to grasp the upper right screw hole on the bottom speaker and lift it out of the enclosure.

   •  Caution: Don’t damage the grounding springs on the bottom speaker.



Reassembly

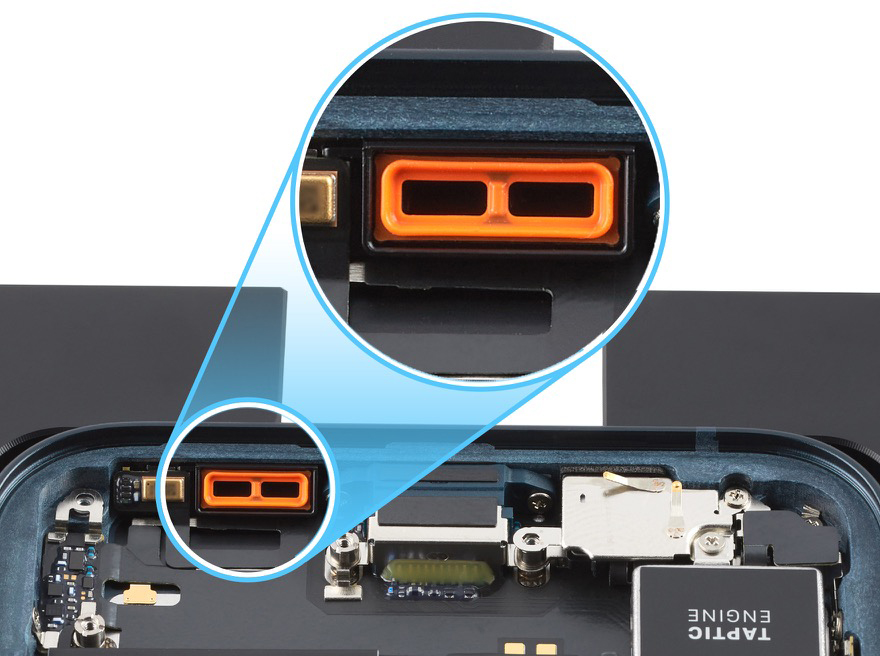

1. Rotate the repair tray. Ensure that the rubber gasket is positioned as shown. If the gasket is out of position, use ESD-safe tweezers to reposition it.



2. Tilt down the bottom edge of the bottom speaker and lower it into the enclosure.

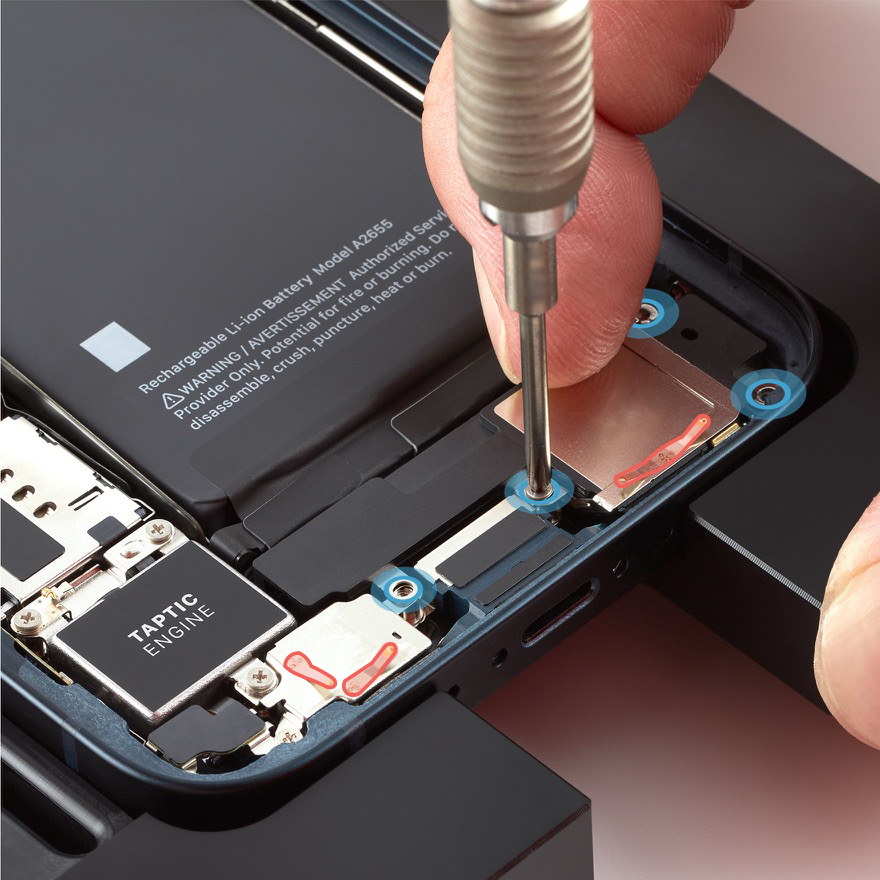

3. Rotate the repair tray. Use the gray torque driver and JCIS bit to install four new crosshead screws (923-06243) into the bottom speaker. Press the bottom speaker down as you install the screws.

   •  Caution: Don’t damage the grounding springs on the bottom speaker.



Reinstall the following part to complete reassembly:

• Display
