Apple iPhone 13 mini Bottom Speaker



Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Remove the following part before you begin:

Tools

  • 5.4-inch repair tray

  • ESD-safe tweezers

  • JCIS bit

  • Nylon probe (black stick)

  • Torque driver (gray, 0.55 kgf cm)

 Caution

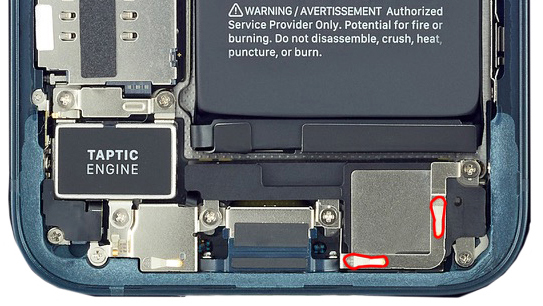

Avoid touching the grounding springs on the bottom speaker.

Removal

  1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

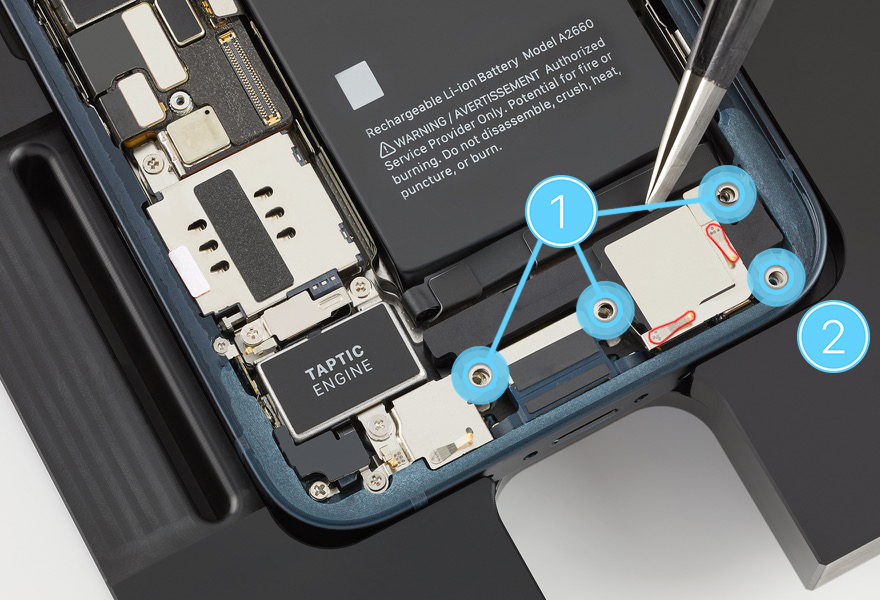

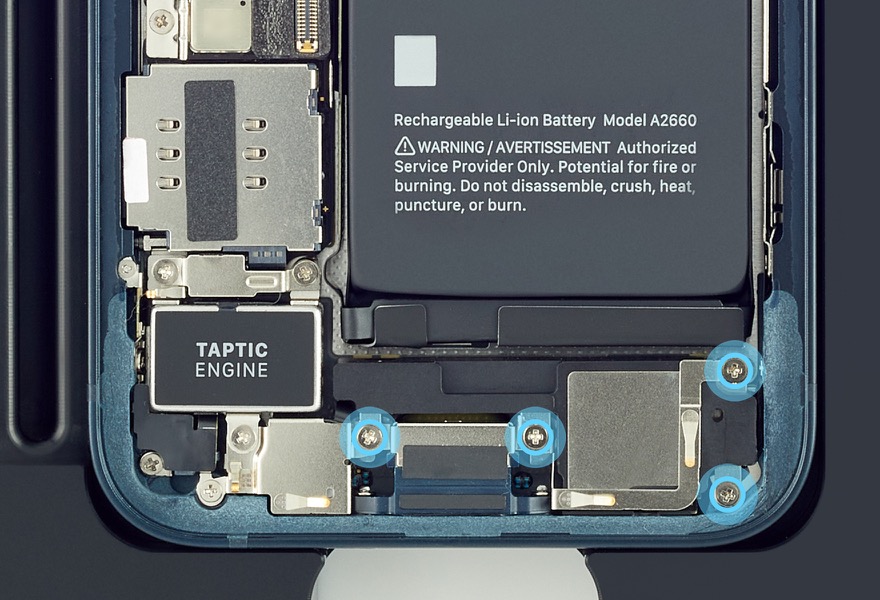

  2. Use a torque driver and the JCIS bit to remove the four crosshead screws from the bottom speaker. Set aside the screws.

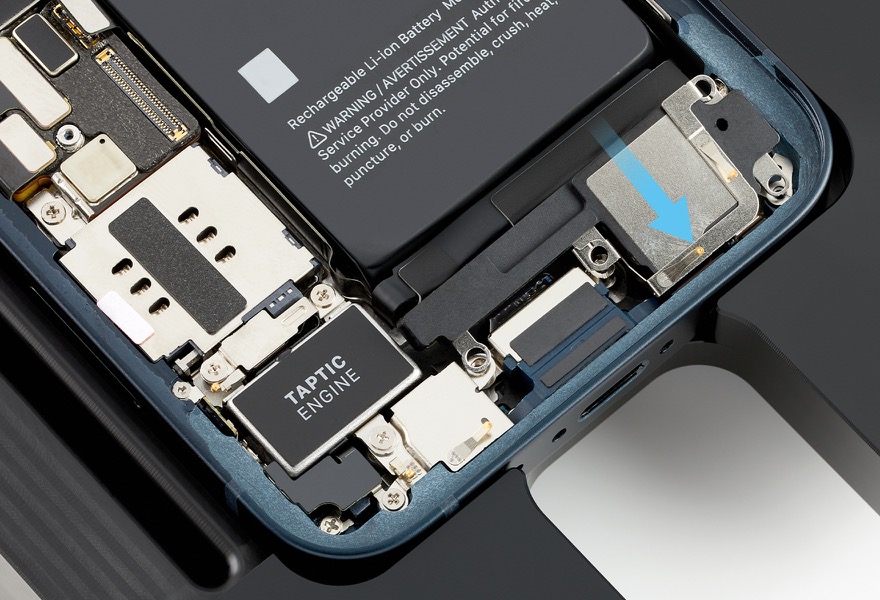

  3. Remove the bottom speaker from the enclosure.

Reassembly

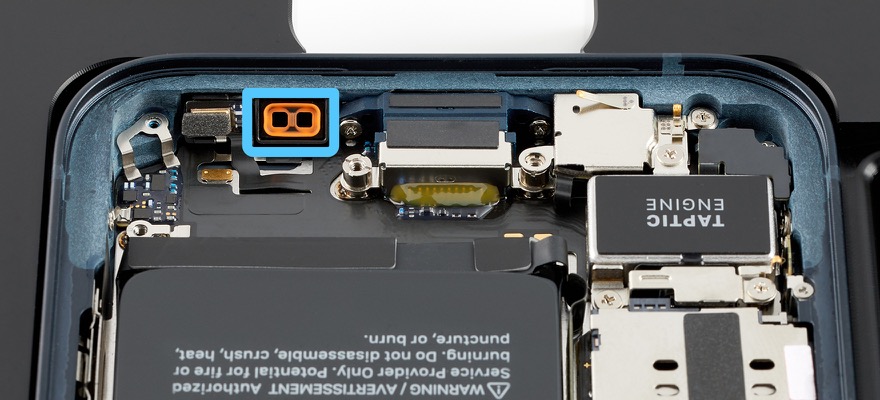

  1. Rotate the repair tray. Ensure that the rubber gasket is positioned as shown. If the gasket is out of position, use ESD-safe tweezers to reposition it.

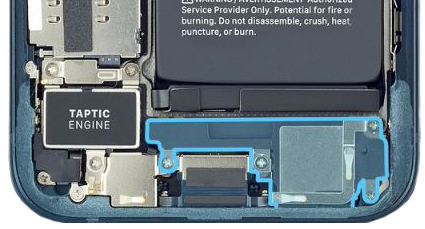

  2. Rotate the repair tray. Align the port on the bottom speaker with the hole in the enclosure. Then lower the bottom speaker into position.

  3. Use the gray torque driver and JCIS bit to install four new crosshead screws (923-06670) (1) (923-06671) (2) into the bottom speaker. Press the bottom speaker down as you install the screws.

    •  Caution: Don’t damage the grounding springs on the speaker.
