Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Removal

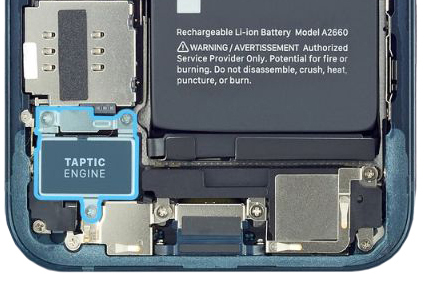

1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

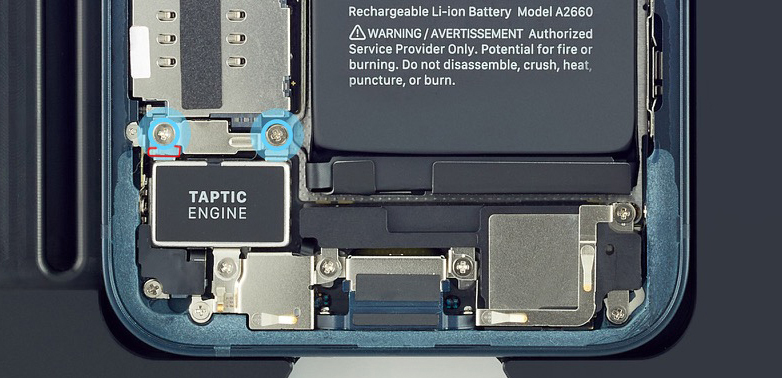

2. Use a torque driver and the JCIS bit to remove the two crosshead screws from the Taptic Engine connector cowling. Set aside the screws.

   •  Caution: Don’t damage the grounding spring on the cowling.



3. Remove the Taptic Engine connector cowling and save it for reassembly.

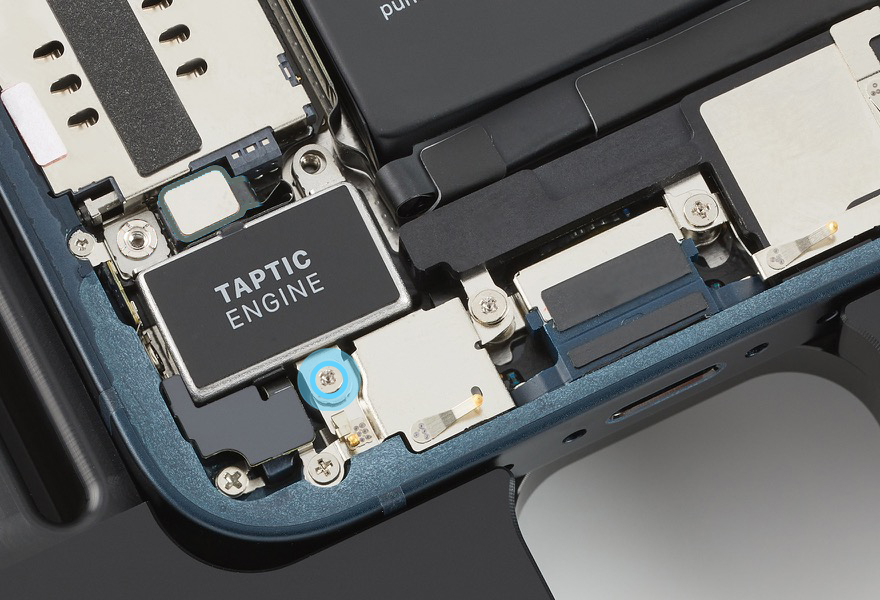

4. Use a torque driver and the JCIS bit to remove the crosshead screw from the Taptic Engine. Set aside the screw.

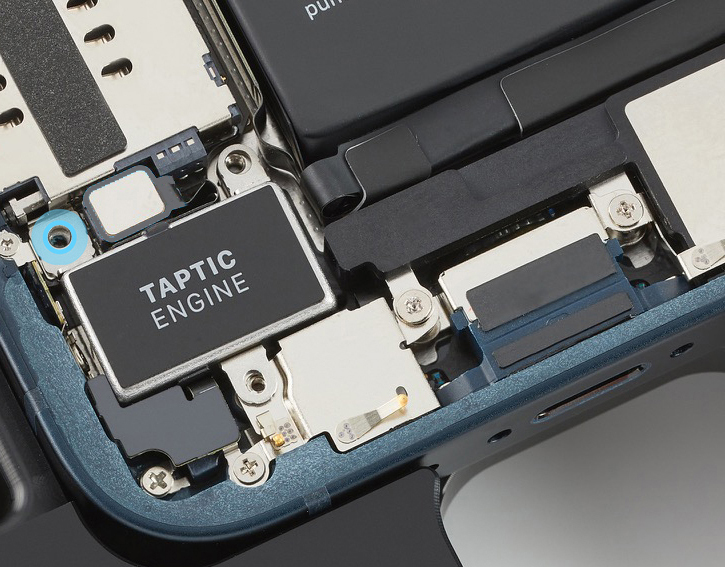

5. Use a torque driver and the super screw bit to remove the super screw from the Taptic Engine. Set aside the screw.



6. Lift the end of the Taptic Engine flex cable off the connector.



7. Use ESD-safe tweezers to remove the Taptic Engine.

Reassembly

1. Position the Taptic Engine in the enclosure.

2. Press the end of the Taptic Engine flex cable to the connector.

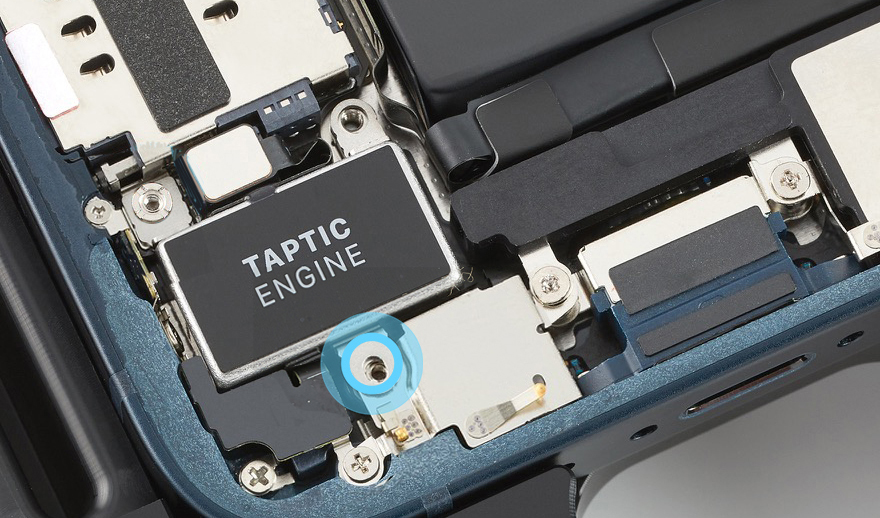

3. Use the blue torque driver and super screw bit to install one new super screw (923-06669) into the Taptic Engine.



4. Use the gray torque driver and JCIS bit to install one new crosshead screw (923-06667) into the Taptic Engine.



5. Position the Taptic Engine connector cowling over the end of the Taptic Engine flex cable.

   •  Caution: Inspect the grounding spring on the Taptic Engine connector cowling to ensure that it’s not damaged.

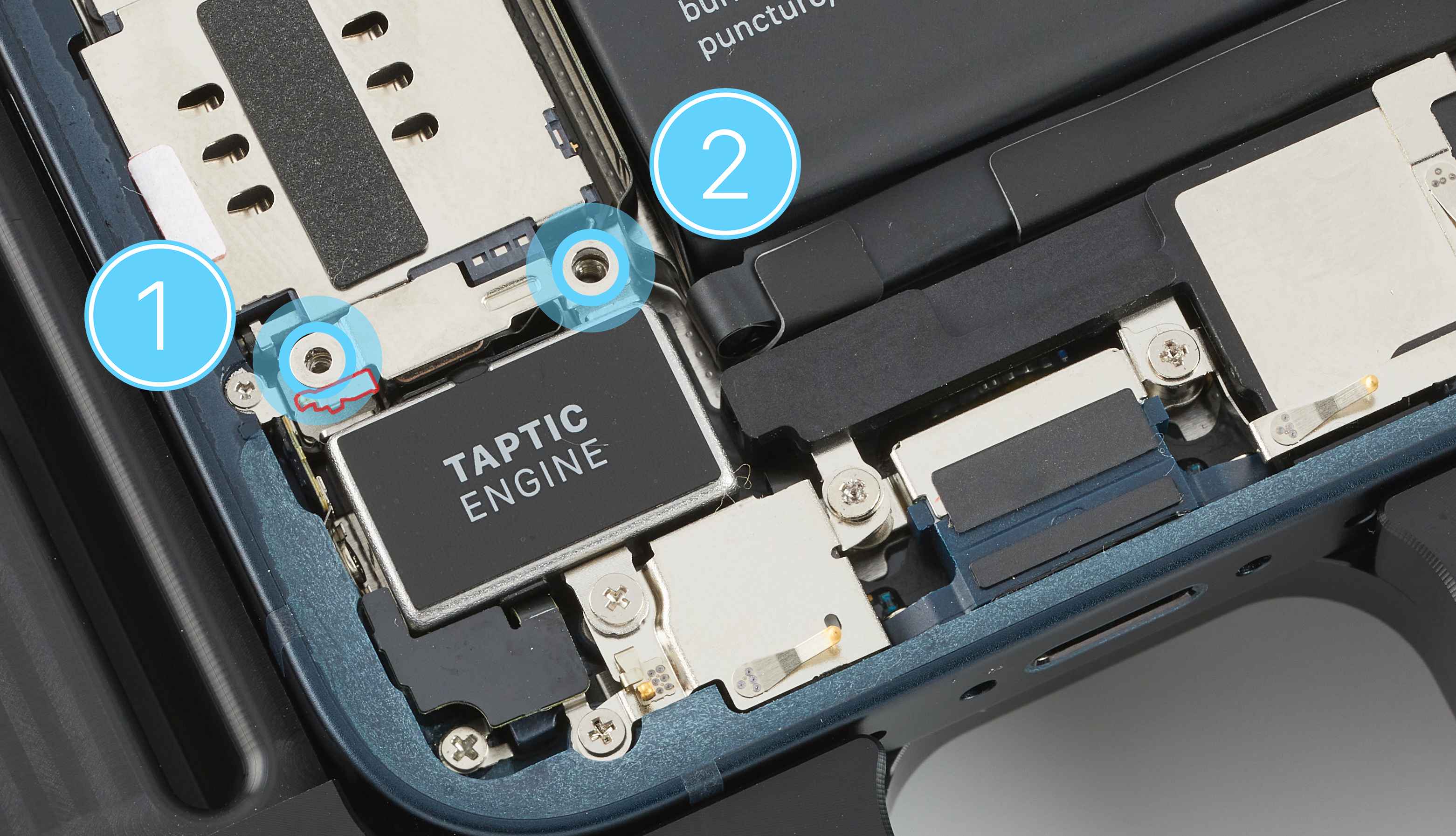

6. Use the gray torque driver and JCIS bit to install two new crosshead screws (923-06666) (1) (923-06665) (2) into the Taptic Engine connector cowling.

   •  Caution: Don’t touch the grounding spring on the cowling.



Reinstall the following part to complete reassembly:

• Display
