Apple iPhone 13 Pro Taptic Engine
Before You Begin
Warning
Read Battery Safety and follow workspace and battery handling guidelines before you begin.
Remove the following parts before you begin:
Tools
-
6.1-inch repair tray
-
ESD-safe tweezers
-
JCIS bit
-
Nylon probe (black stick)
-
Super screw bit
-
Torque driver (blue, 0.65 kgf cm)
Removal
-
Place the enclosure in the repair tray with the Lightning connector facing the cutout.
-

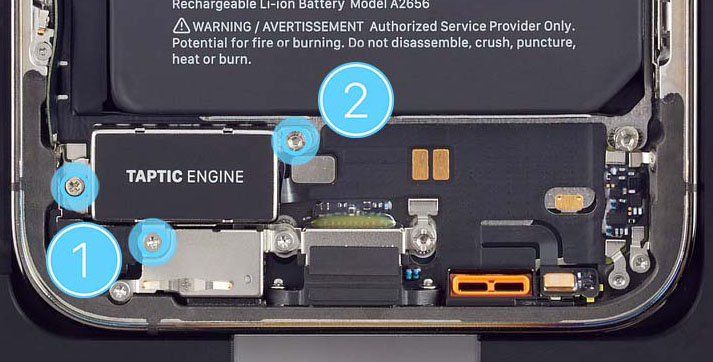

Use a torque driver and the JCIS bit to remove the two crosshead screws from the Taptic Engine (1). Set aside the screws.
-
Use a torque driver and the super screw bit to remove the super screw from the Taptic Engine (2). Set aside the screw.
-

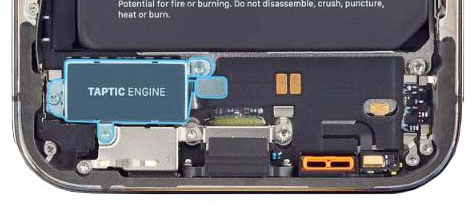

Lift the end of the Taptic Engine flex cable off the connector.
-

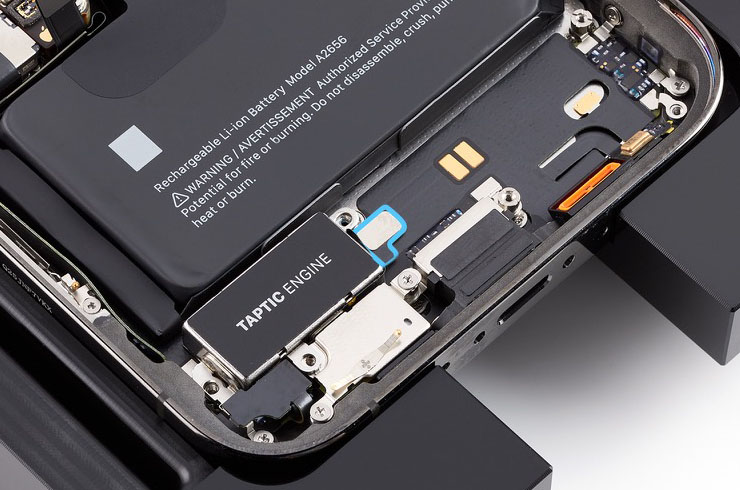

Remove the Taptic Engine from the enclosure.
Reassembly
-
Position the Taptic Engine in the enclosure.
-
Press the end of the Taptic Engine flex cable to the connector.
-

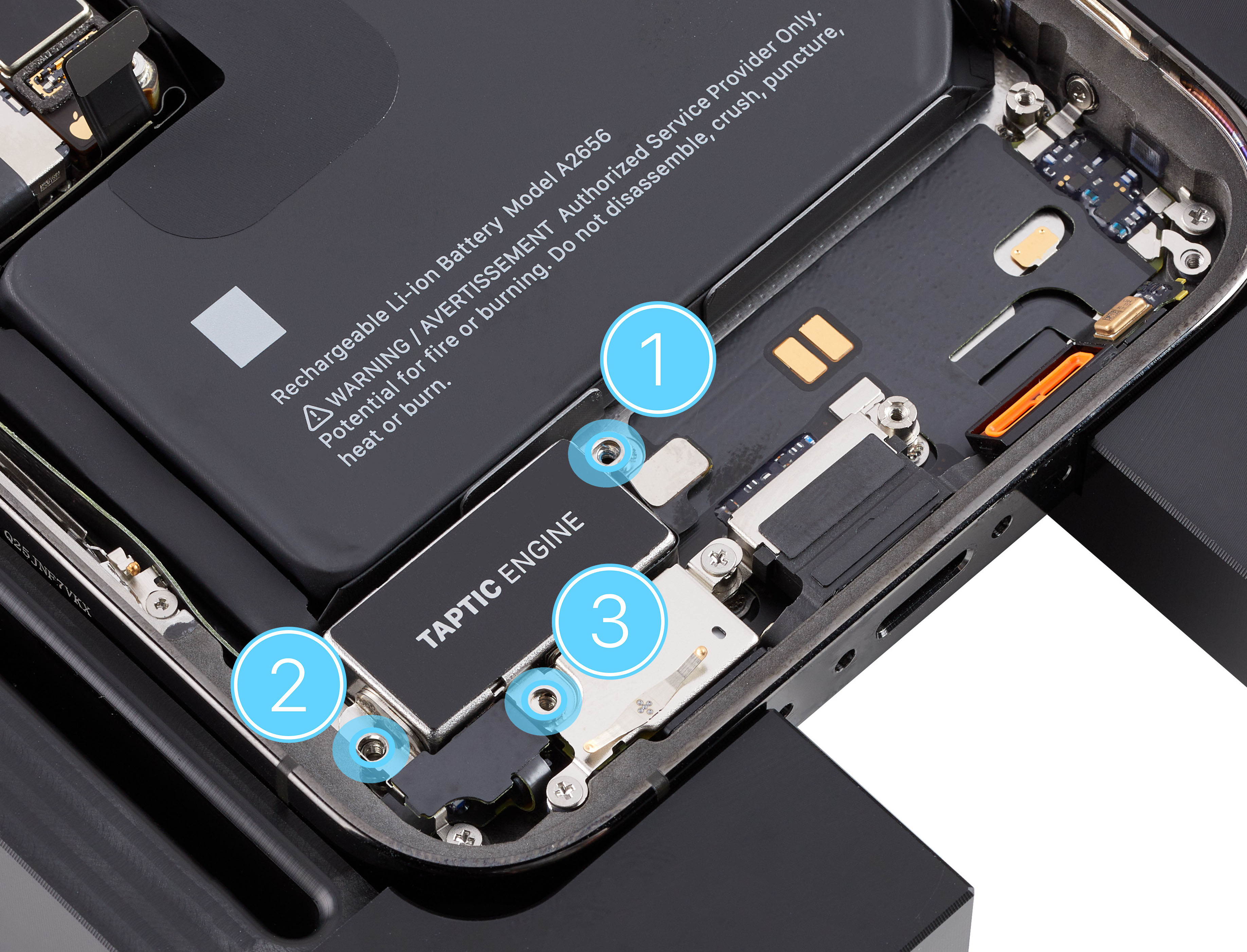

Use the blue torque driver and super screw bit to install one new super screw into the Taptic Engine (923-06281) (1).
-
Use the blue torque driver and JCIS bit to install two new crosshead screws (923-06263) (2) (923-06280) (3) into the Taptic Engine.
Reinstall the following parts to complete reassembly:
