Apple iPhone 13 Taptic Engine



Before You Begin

 Warning

Read Battery Safety and follow workspace and battery handling guidelines before you begin.

Remove the following part before you begin:

Tools

  • 6.1-inch repair tray

  • ESD-safe tweezers

  • JCIS bit

  • Nylon probe (black stick)

  • Torque driver (blue, 0.65 kgf cm)

Removal

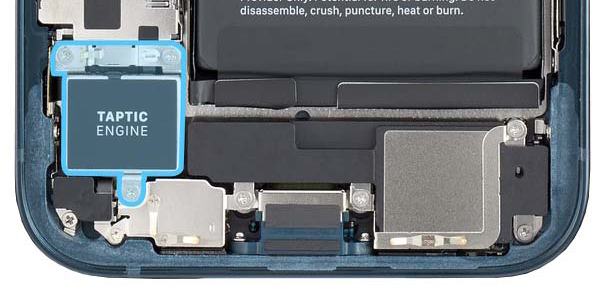

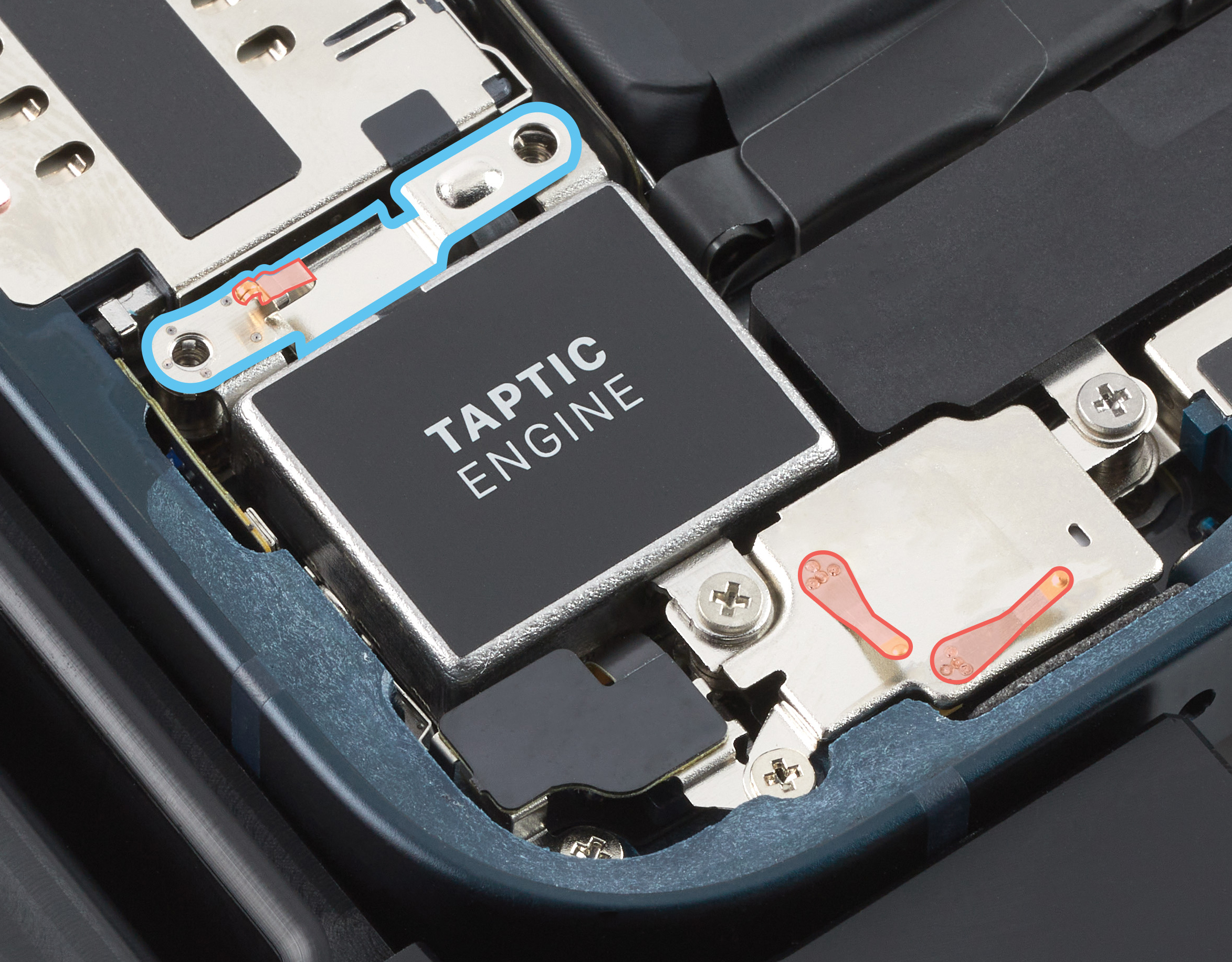

  1. Place the enclosure in the repair tray with the Lightning connector facing the cutout.

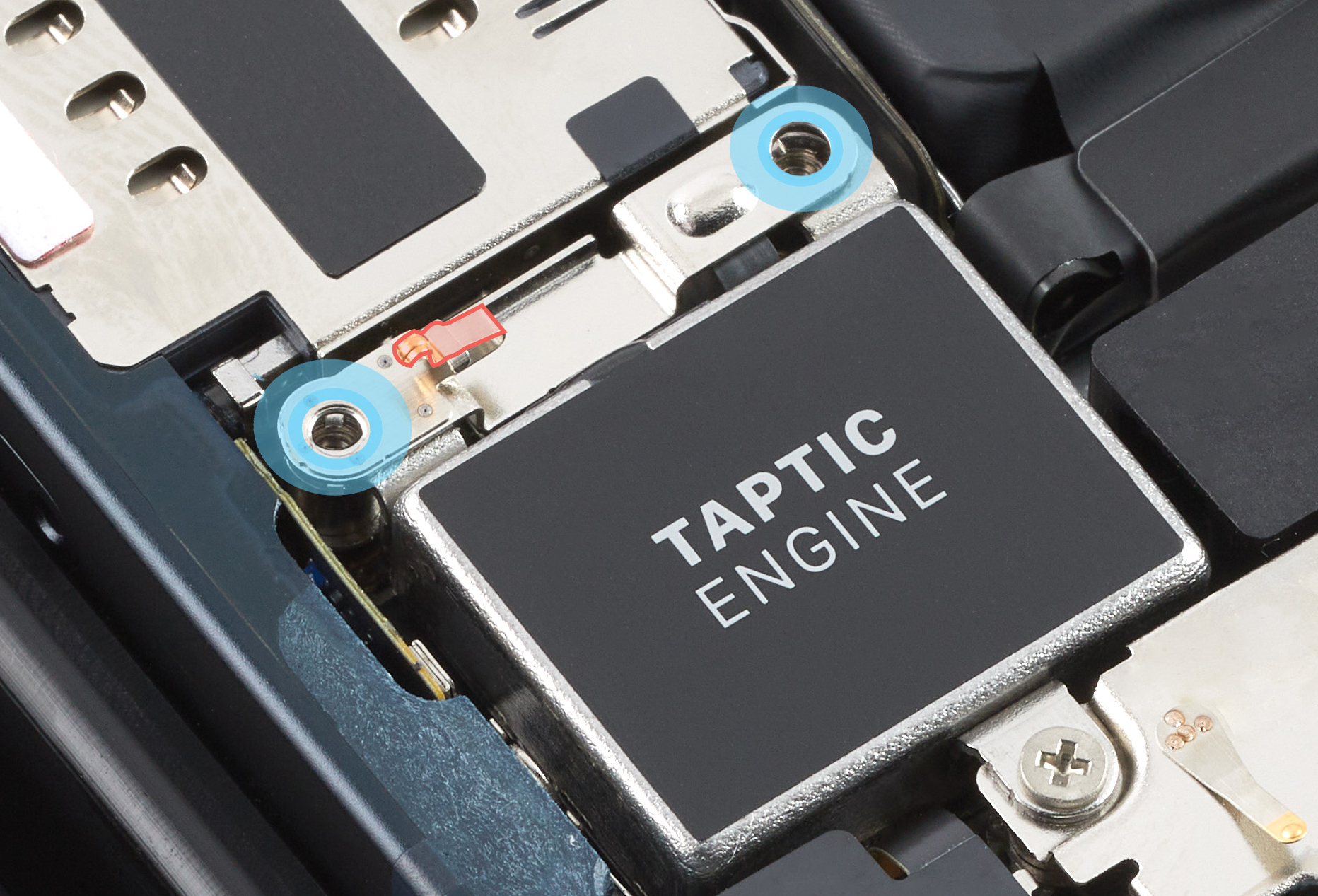

  2. Use a torque driver and the JCIS bit to remove the two crosshead screws from the Taptic Engine connector cowling. Set aside the screws.

    •  Caution: Don’t damage the grounding spring on the cowling.

  3. Remove the Taptic Engine connector cowling and save it for reassembly.

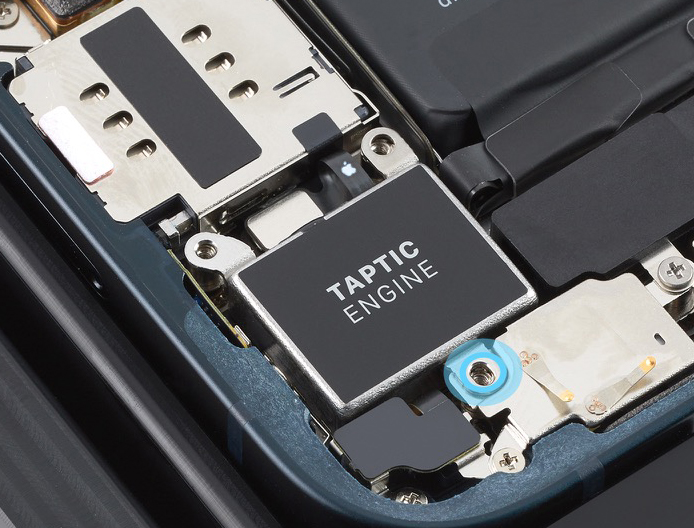

  4. Use a torque driver and the JCIS bit to remove the crosshead screw from the Taptic Engine. Set aside the screw.

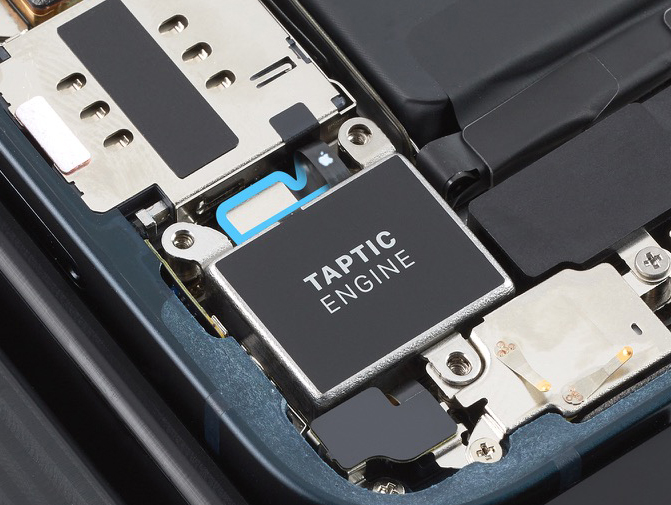

  5. Lift the end of the Taptic Engine flex cable off the connector.

  6. Use ESD-safe tweezers to remove the Taptic Engine.

Reassembly

  1. Position the Taptic Engine in the enclosure.

  2. Press the end of the Taptic Engine flex cable to the connector.

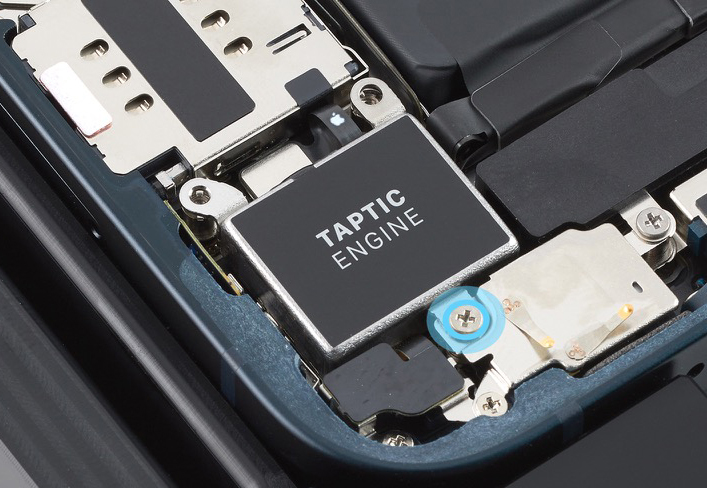

  3. Use the blue torque driver and JCIS bit to install one new crosshead screw (923-07003) into the Taptic Engine.

  4. Position the Taptic Engine connector cowling over the end of the flex cable.

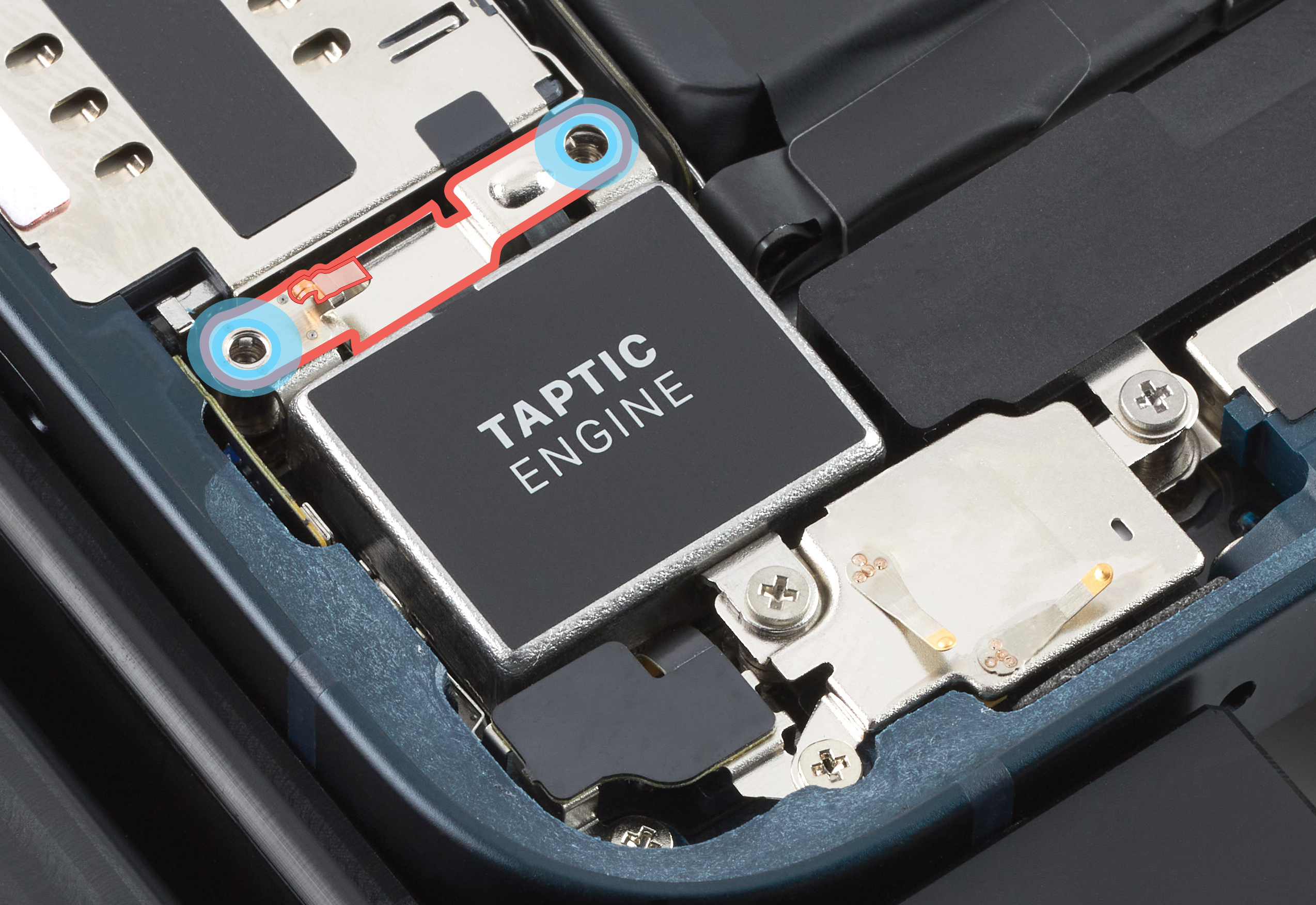

  5. Use the blue torque driver and JCIS bit to install two new crosshead screws (923-07003) into the Taptic Engine connector cowling.

    •  Caution: Don’t damage the grounding spring on the cowling.

Reinstall the following part to complete reassembly:
