Apple iPhone 16e Internal View

iPhone 16e Internal View, Orderable Parts, and Exploded View

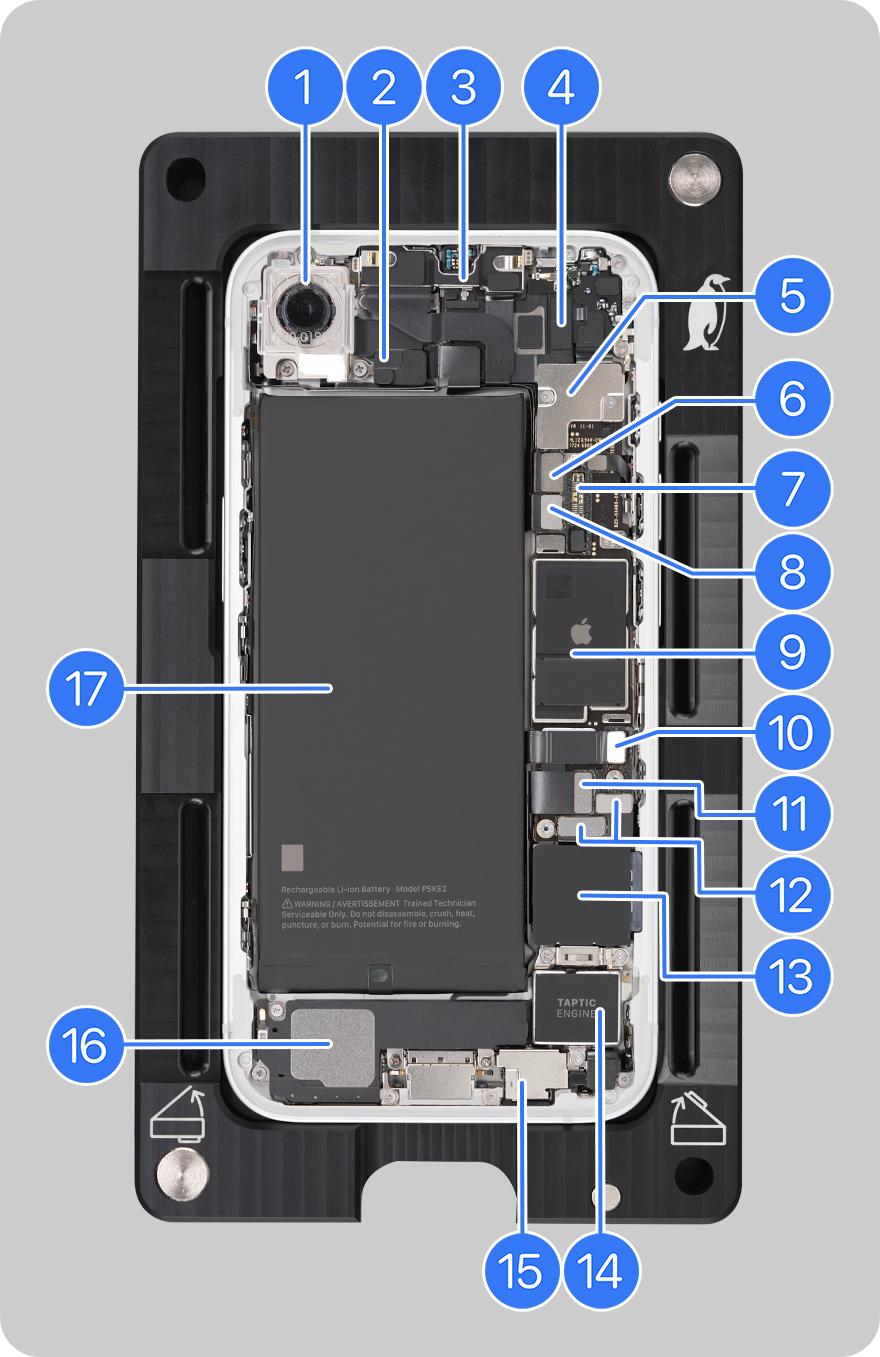

Internal view

  1. Camera

  2. Camera spacer

  3. TrueDepth camera

  4. Top speaker

  5. Upper connector cowling

  6. TrueDepth camera flex cable

  7. Back glass connector

  8. Camera flex cable

  9. Logic board

  10. Battery flex cable

  11. USB-C assembly flex cable

  12. SIM assembly flex cable

  13. SIM assembly

  14. Taptic Engine

  15. Main microphone

  16. Bottom speaker

  17. Battery

Orderable parts

Name

Numbers

Kit Contents (screws can also be ordered separately)

Screws

Ambient light sensor connector cowling

923-12019

10 cowlings

923-08381 (1)

Back glass

661-49429, black

661-49430, white

1 back glass

1 screw tray

—

Back glass adhesive

923-12052

30 back glass adhesive sheets*

—

Battery kit

661-49432

1 battery

1 battery cap

1 screw tray

—

Bottom speaker

923-12003

1 speaker

1 screw tray

923-08379 (2) inner corner, right

923-08382 (2) lower right

923-12368 (2) upper left, lower left

Bottom speaker rubber gasket

923-12587

1 rubber gasket

—

Camera

661-49425

1 camera

1 screw tray

923-12362 (2) top, lower left

923-12363 (1) lower right

Camera spacer

923-12584



923-12364 (1) (super screw)

Display

661-49431

1 display

1 screw tray

—

Display adhesive

923-12051

30 display adhesive sheets*

—

Display connector cowling

923-12018

10 cowlings

923-08381 (1)

Grounding springs

923-12611

923-12609

923-12612

10 grounding springs

923-12617 (1)

Lower connector cowling

923-12017

10 cowlings

923-08382 (2)

Main microphone

923-12004

1 main microphone

1 screw tray

923-08382 (1) lower left

923-12369 (1) upper left (super screw)

923-12370 (1) upper right (super screw)

Middle connector cowling

923-12016

10 cowlings

923-09820 (1)

Security screws

—

100 screws

923-09817, black (2)

923-09818, white (2)

SIM tray

923-12011, black, single

923-12012, white, single

923-12013, black, dual

923-12014, white, dual

1 SIM tray

—

Taptic Engine

923-12022

1 Taptic Engine

1 screw tray

923-12367 (1)

Taptic Engine connector cowling

923-12607

10 cowlings

923-08378 (2)

Top speaker

923-12005

1 top speaker

1 screw tray

923-08504 (1) enclosure wall, upper left

923-12365 (2) upper right, middle right

923-12366 (1) lower right

923-12457 (1) upper middle

TrueDepth camera

661-49426

1 TrueDepth camera

1 screw tray

—

Upper connector cowling

923-12015

10 cowlings

923-09820 (1) left

923-08382 (1) right

Enclosure Part Numbers

  • 923-12531, black

  • 923-12532, white

USB-C Connector Part Numbers

  • 923-12009, black

  • 923-12010, white

* Important: Adhesive expires and should be discarded after 18 months. Each box of adhesive has a (9D) number on the top right corner of the part label. The first two numbers indicate the year and the second two numbers indicate the week. The expiration date is 18 months from the date in the (9D) number.

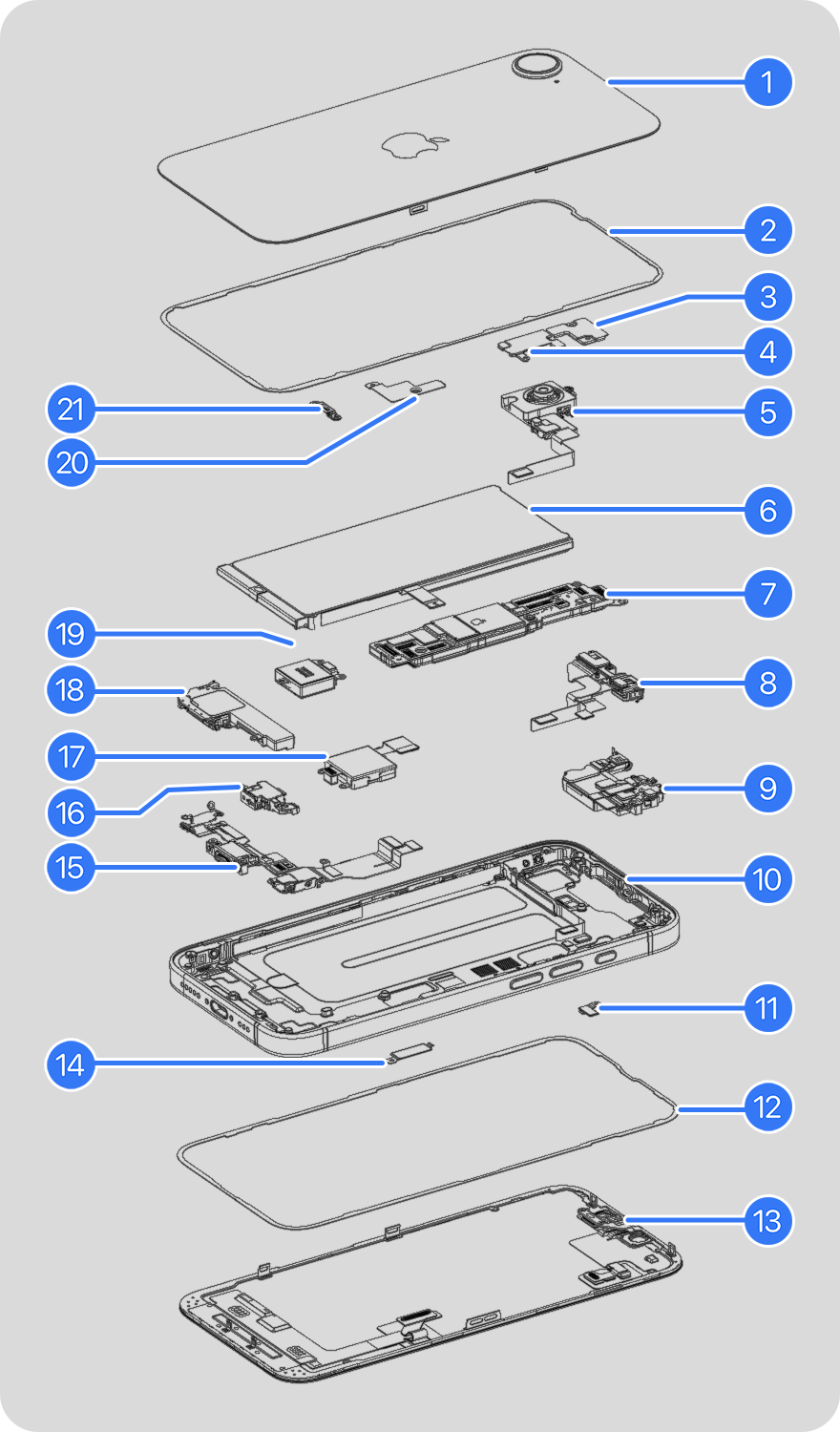

Exploded view

  1. Back glass

  2. Back glass adhesive

  3. Upper connector cowling

  4. Middle connector cowling

  5. Camera

  6. Battery

  7. Logic board

  8. TrueDepth camera

  9. Top speaker

  10. Enclosure

  11. Ambient light sensor connector cowling

  12. Display adhesive

  13. Display

  14. Display connector cowling

  15. USB-C connector

  16. Main microphone

  17. SIM assembly

  18. Bottom speaker

  19. Taptic Engine

  20. Lower connector cowling

  21. Taptic Engine connector cowling

Refer to the logic board interconnect diagram to view electrical connections between the logic board and other components.
